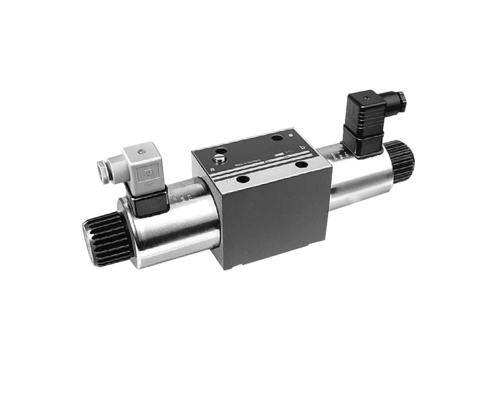

電磁方向切換弁　呼び径10

General data
Type: Direct-acting spool valve
Oper. specification: DC solenoid, submersed in oil with emergency hand actuation
Connecting dimensions: Pinhole image as per DIN 24340 type A, CETOP 4.2-4.3, ISO 4401
Type of connection: Subplate mounted
Sealing: 4 sealing rings 13 x 16.1 x 2 NBR   ( are supplied )
Part no. 3002 069
Type of mounting: 4 socket head cap screws M6 x 40 -12.9 DIN EN ISO 4762
Part no. 3301 200
Seating torque: 15,5 Nm
Mounting position: any

Hydraulic data
Fluid: Hydraulic oil as per DIN 51524
Viscosity range: (2,8 ... 500) x 10 - 6 m ² /s
Temperature: – 30 ... + 80 ºC
Operating pressure: Ports A, B, P ... 315 bar
Return pressure: Port T ... 210 bar
Leakage rate: ... 30 cm ³ /min at 100 bar ν = 36 x 10 - 6 m ² /s and t = 50 ºC
Flow rate: ... 120 l/min
Flow curve: measured at ν = 36 x 10 - 6 m ² /s and t = 50 ºC
