ミニヒンジクランプ

The mini hinge clamp is a low-cost hydraulic clamping element for thin-walled workpieces and reduced space. The special kinematics allow clamping nearly without side loads of workpieces which are very sensitive against deformation.
A clamping recess in the workpiece a little bit wider than the clamping lever is sufficient as clamping surface.

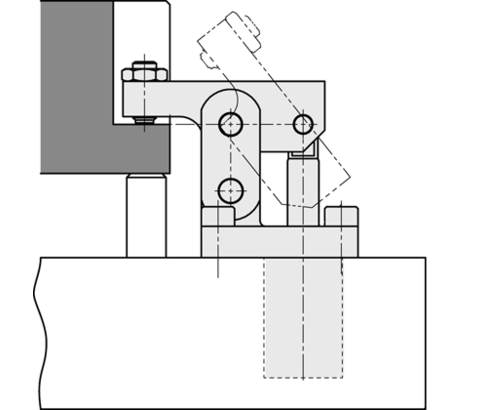

When pressurising the element, the piston moves upwards and swivels the clamping lever over the hinges forwards and at the same time downwards onto the workpiece. The piston force is deviated by 180° and is available as clamping force with virtually no loss of efficiency.
During unclamping the clamping lever with swivel contact bolt will be swivelled behind the front edge of the flange, thereby unimpeded loading and unloading of the workpiece is possible. Workpieces which are very sensitive against deformation are clamped nearly without any side loads, if the clamping surface is exactly in the centre of the clamping range.
The optionally available long clamping lever is provided for customer-specific adaptations.

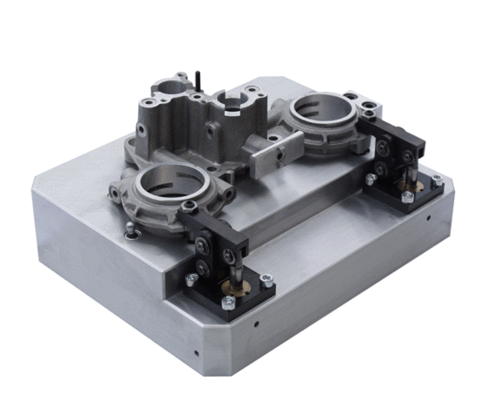

Double clamping fixture
