パイプ継手

Advantages

• Particularly sturdy design
• Minimum fluid loss during coupling and uncoupling
• Subsequent bleeding of the system unnecessary

Application

• Construction machines
• Agricultural machines
• Railway engineering
• Offshore industry
• Robotics
• Special vehicles

and others

Description

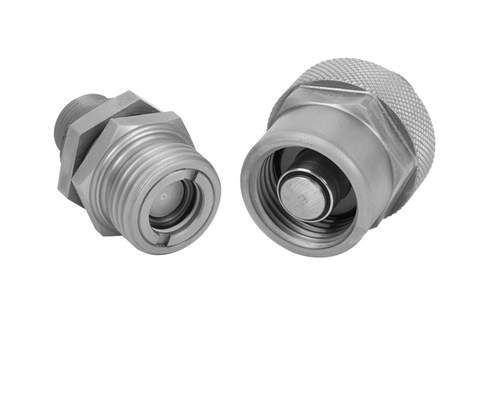

The pipe couplings are screw coupling with shutoff on both sides. The valves in the fixed and loose halves open and close automatically during the coupling process.
To ensure proper functioning, the two halves must be screwed together up to the stop of the connecting thread.
This coupling reduces the fluid loss during coupling and uncoupling to a minimum.
Due to the screw closure it is possible to couple against a residual pressure. The coupling of coupling halves under full operating pressure must be avoided, otherwise the seals will be damaged.

Materials
Steel, zinc/nickel coated
Back-up ring: PTFE
Seal: NBR + PUR

Operating temperature
– 20 °C to + 80 °C
