スイングクランプ、強化メカ

Hydraulic swing clamps are used for clamping of workpieces, when it is essential to keep the clamping area free of straps and clamping components for unrestricted workpiece loa­ding and unloading.

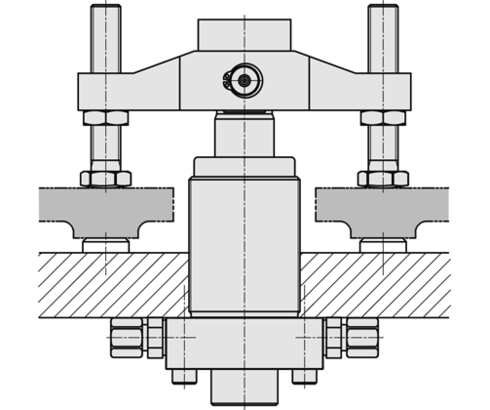

The version with pendulum eye or fork head allows simultaneous clamping of two work­pieces with half clamping force.

The hydraulic swing clamp is a double­acting pull­type cylinder where a part of the total stro­ke is used to swing the piston.

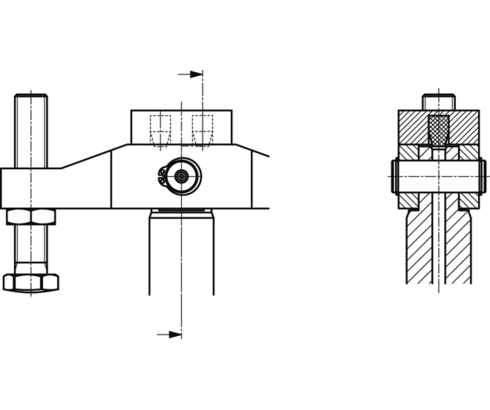

The piston end of this swing clamp is desig­ned as pendulum eye or fork head. By means of a double clamping arm 2 workpieces can be clamped at the same time.
For both versions a springy element is required in order to maintain the double clamping arm in the unclamped position in horizontal position.

The sturdy pendulum eye can transmit high clamping forces up to a max. operating pres­sure of 500 bar.
The double clamping arm has to be dimensioned according to the load.

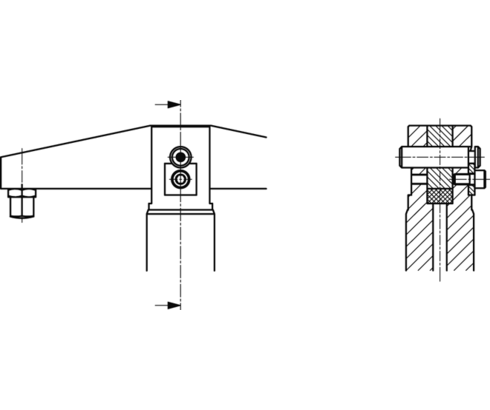

The fork head allows a max. operating pressure of 160 bar.
Advantageous is the fact that rela­tively simple clamping arms can be manufactu­red from flat materials.
