スクリューポンプ

Screw pumps are suitable as pressure source for small clamping fixtures, which must be independent of an external pressure source.

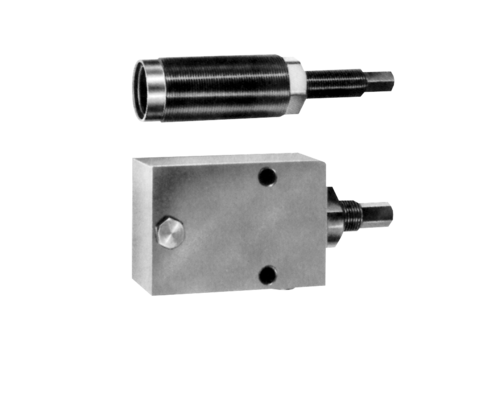

2 versions are available:

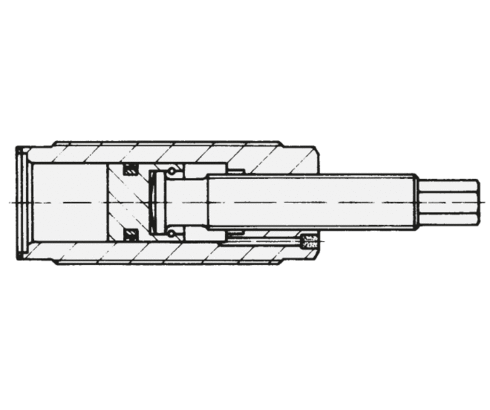

• threaded-body type

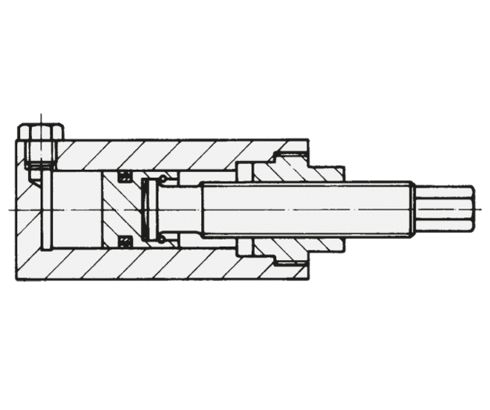

• block-body type


Technical data
Piston: Ø 25 mm
Stroke: 43 mm
Displacement: 21 cm³
Displacement/revolution:  0,98 cm³
Mounting torque for threaded-body type: 80 Nm
Mounting position: horizontal
