ワーク2個クランプ用バイス HILMA.DUO

手動式、センター寄せタイプ、口金幅80 mm

ダウンロード

カタログ

取扱説明書

オンデマンドで利用可能

ラインアップ情報

Further information
HILMA.DUO - www.stark-roemheld.com/hilma-duo

Description

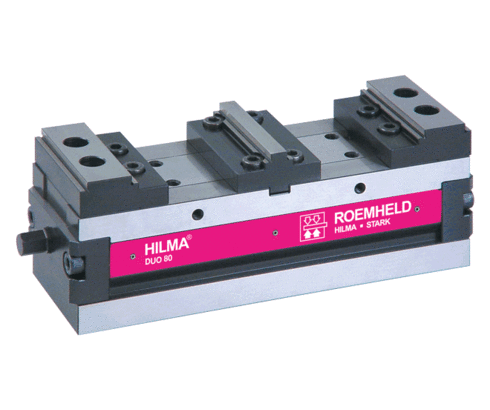

Double Workholding System HILMA.DUO

clamping against the central fixed jaw
jaw width 80 mm
mechanically operated

Application
Double workholding systems HILMA.DUO are particularly suitable for double clamping - both in horizontal and vertical plane.

Description
Double clamping systems HILMA.DUO convince by their short overall length, durability and precision. The guidance and sealing principle works without any delicate sheet metal covers or plastic wipers. The centrally arranged fixed jaw as a central jaw is without load and thus absolutely zero point stable.
The workpieces are positioned close to each other, and thus reducing the travel paths of the machining centre to a minimum. The purely mechanical operation enables clamping also with low and always reproducible clamping forces.

製品 (2)

数

アイテム番号	CADデータ	Typ	Betätigung	max. Spannkraft [kN]	Spannprinzip
アイテム番号 938720101	CADデータ /	Typ HILMA.DUO	Betätigung mit Handkurbel	max. Spannkraft [kN] 12	Spannprinzip Festbacke	プロパティ
アイテム番号 938720201	CADデータ /	Typ HILMA.DUO	Betätigung mit Handkurbel	max. Spannkraft [kN] 12	Spannprinzip Festbacke	プロパティ

アクセサリー (2)

数

アイテム番号	CADデータ	商品の説明
アイテム番号 938726901	CADデータ /	商品の説明 Reversible step jaw web 26 mm as per data sheet WS 3.380Z
アイテム番号 938726912	CADデータ /	商品の説明 Central step jaw web 10 mm as per data sheet WS 3.380Z

Application examples

Compact clamping systems HILMA.DUO 80

Three mechanically-operated compact double clamping systems "HILMA.DUO 80" on reversible clamping system. The very compact design of the clamping systems allows an optimum assignment of the machine with workpieces. Mounted on base plates, the clamping systems can be axially moved and easily adjusted to changing component dimensions. Both clamping positions are clamped via a lead screw.
