治具クランプ、フローティングタイプ

Application

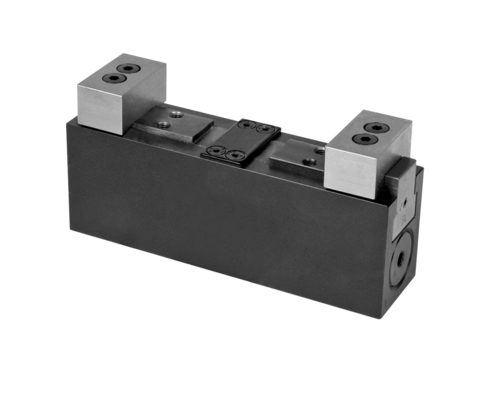

Position-flexible, hydraulic vises can additionally clamp and support a workpiece, which is already positioned and clamped in fixed stops, at unstable workpiece sections.
Due to their compact design they can be arranged in a very limited space.
Hydraulic vises are especially suitable for series manufacturing in automated mode.
The double-acting cylinder function combined with central lubrication and good swarf protection guarantees a high process safety.

Description

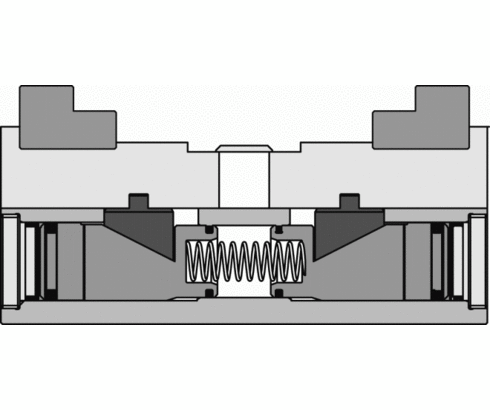

The hydraulic vise with position-flexible clamping function consists of a very slim basic body with 2 integrated hydraulic cylinders. The piston forces are transmitted by two  channels to the two clamping slides that can be moved independently from each other.  During clamping both clamping slides contact the workpiece nearly without force.
Only after that the clamping pressure and thereby the clamping force increases. Due to wedging of the clamping slides these are protected against displacement. Thereby the workpiece is floatingly held without deformation.
All threads and ports are at the bottom to allow a space-saving arrangement of several clamping points in a very limited space.
If fixing from below is not possible an adaptor plate for manifold mounting or tube connection is available. As accessory also blanks of clamping jaws are available for adaptation to the workpiece contour.


Advantages

• Very compact design
• High stiffness
• High clamping force with low contact forces
• Position flexible within the clamping range
• Double-acting function
• Fixtures without pipes possible
• Exchangeable jaws
• Good swarf protection
• Port for central lubrication
• Mounting position: any
