バイス HILMA.KNC

• clamping against the fixed jaw
• mechanically / hydraulically operated
• jaw widths 100, 125, 160 mm

For exacting demands on clamping quality

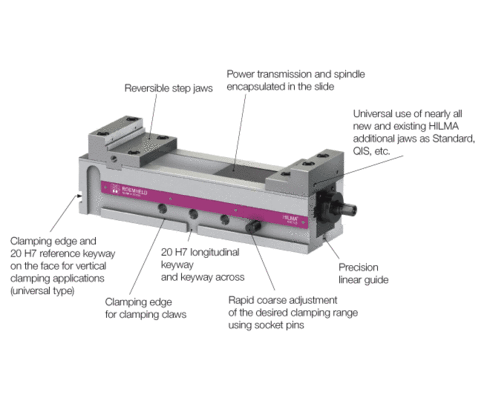

The mechanical-hydraulic force transmission and the lead screw are integrated into the slide body and are fully encapsulated. Easy, user-friendly manual clamping using the crank handle. 6-stage clamping force selection and angle drive are available as accessories which may be retrofitted. The steel base with minimum deformation equipped with hardened and ground guideways as well as the linear guide with almost no play of the slide guarantee maximum precision. The quick adjustment of the clamping ranges is made with socket pins, the use of a gas pressure spring relieves the load on the clamping slide. HILMA.KNC Universal for horizontal, vertical and lateral arrangement, with longitudinal and crosswise keyways 20 H7, reference keyway 20 H7 on the face, threaded mounting holes in the base and gas pressure spring for load relief of the slide in vertical arrangement. For vertical or lateral applications, the use of support angles or basic bodies is recommended.

Special benefits

• very stable base with hardened and ground guideways
• universal use, can be clamped horizontally, vertically and laterally
• easy and quick adjustment of the jaw opening using socket pins

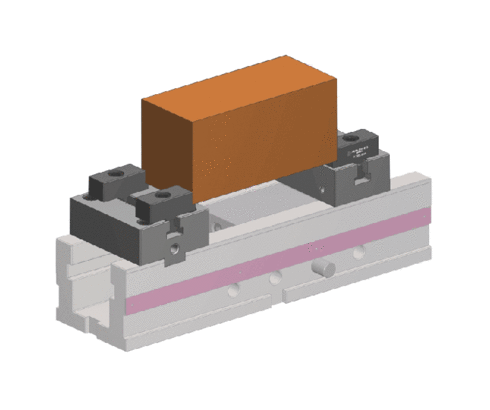

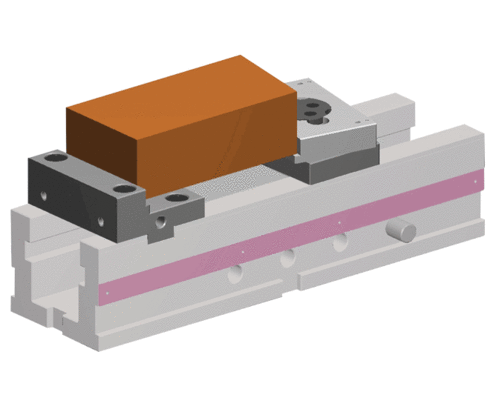

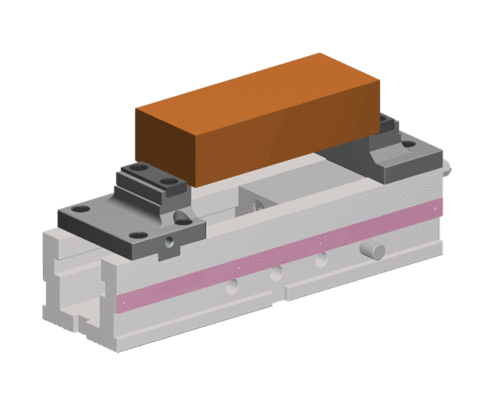

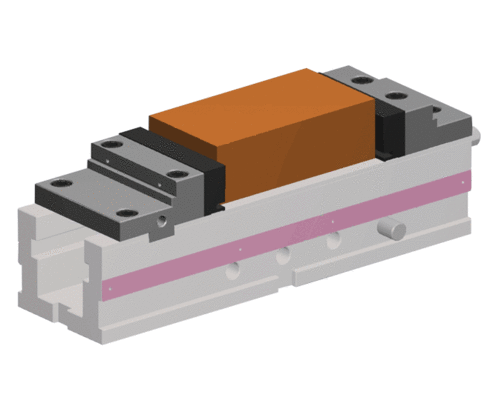

• wide range of jaws

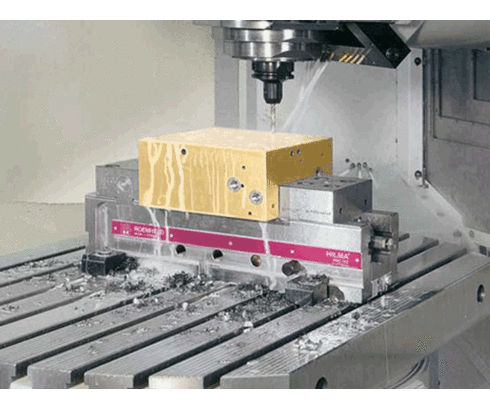

The mechanical-hydraulic machine vise HILMA.KNC 125 with a jaw width of 125 millimetres is used where flexibility and highest precision are required. The HILMA.KNC 125 has a clamping force of 40 kN and a jaw opening from 0 to 354 millimetres using standard reversible jaws. Quick adjustment of the clamping range using socket pins. Alternatively numerous other standard clamping jaws can be used. Machine vises of the HILMA.KNC series can be used – as shown - on vertical machining centres as well as on horizontal machining centres. Also the use on 5-axis machining centres with extra high
