    Series
    F9.500-3

    High-pressure filter, compact

    max. operating pressure 350 bar

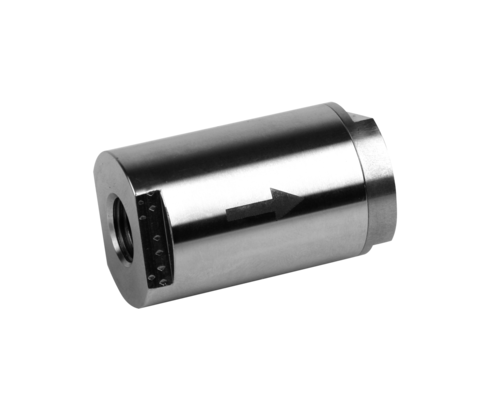

    High-pressure filter, compact
    Downloads
    Catalogue sheet
    ENESFR
    Operating instructions
    Information Series
    Description
    F 9.500 High-pressure filter, compact

    Advantages

    • Compact design for use in limited space
    • Up to 350 bar operating pressure
    • Filter insert can be cleaned
    Products (2)
    filter performance [µm]
    type
    compact design (2)
    max. operating pressure [bar]
    350 (2)
    hydraulic port
    pipe thread G1/4 (2)
    max. flow rate [l/min]
    25 (2)
    material of the body
    stainless steel (2)
    filter material
    stainless steel (2)
    direction of flow
    one (2)
    Item no. CAD datatypemax. operating pressure [bar]hydraulic portmax. flow rate [l/min]
    Item no.
    3887067
    CAD data
    type
    compact design
    max. operating pressure [bar]
    350
    hydraulic port
    pipe thread G1/4
    max. flow rate [l/min]
    25
    Properties
    Item no.
    3887154
    CAD data
    type
    compact design
    max. operating pressure [bar]
    350
    hydraulic port
    pipe thread G1/4
    max. flow rate [l/min]
    25
    Properties
    Item no.
    3887067
    type
    compact design
    max. operating pressure [bar]
    350
    hydraulic port
    pipe thread G1/4
    max. flow rate [l/min]
    25
    material of the body
    stainless steel
    filter material
    stainless steel
    filter performance [µm]
    10
    direction of flow
    one
    Item no.
    3887154
    type
    compact design
    max. operating pressure [bar]
    350
    hydraulic port
    pipe thread G1/4
    max. flow rate [l/min]
    25
    material of the body
    stainless steel
    filter material
    stainless steel
    filter performance [µm]
    30
    direction of flow
    one
    Accessories (2)
    Item no. CAD data Description
    Item no.
    3887071
    CAD data
    Description
    High-pressure plug-in filter / Filtereinsatz material: stainless steel filter performance: 10 μm as per data sheet F9.500
    Item no.
    3887104
    CAD data
    Description
    High-pressure plug-in filter material: stainless steel filter performance: 30 μm as per data sheet F9.500
    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
