    Series
    F9.500-5

    High-pressure plug-in filter

    max. operating pressure 350 bar
    High-pressure plug-in filter
    Downloads
    Catalogue sheet
    ENESFR
    Operating instructions
    Information Series
    Description

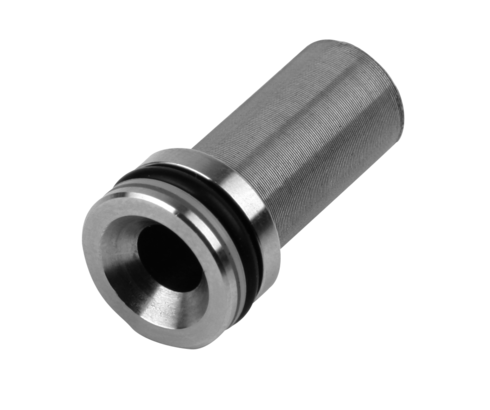

    F 9.500 High-pressure plug-in filter

    Advantages

    • Compact dimensions
    • For installation in drilled channels and plates, thereby direct protection of hydraulic components
    Products (2)
    filter performance [µm]
    type
    plug-in filter (2)
    max. operating pressure [bar]
    350 (2)
    hydraulic port
    bore hole Ø 12 mm (2)
    max. flow rate [l/min]
    25 (2)
    material of the body
    stainless steel (2)
    filter material
    stainless steel (2)
    direction of flow
    one (2)
    Item no. CAD datatypemax. operating pressure [bar]hydraulic portmax. flow rate [l/min]
    Item no.
    3887071
    CAD data
    type
    plug-in filter
    max. operating pressure [bar]
    350
    hydraulic port
    bore hole Ø 12 mm
    max. flow rate [l/min]
    25
    Properties
    Item no.
    3887104
    CAD data
    type
    plug-in filter
    max. operating pressure [bar]
    350
    hydraulic port
    bore hole Ø 12 mm
    max. flow rate [l/min]
    25
    Properties
    Item no.
    3887071
    type
    plug-in filter
    max. operating pressure [bar]
    350
    hydraulic port
    bore hole Ø 12 mm
    max. flow rate [l/min]
    25
    material of the body
    stainless steel
    filter material
    stainless steel
    filter performance [µm]
    10
    direction of flow
    one
    Item no.
    3887104
    type
    plug-in filter
    max. operating pressure [bar]
    350
    hydraulic port
    bore hole Ø 12 mm
    max. flow rate [l/min]
    25
    material of the body
    stainless steel
    filter material
    stainless steel
    filter performance [µm]
    30
    direction of flow
    one
    Accessories (1)
    Item no. CAD data Description
    Item no.
    3002017
    CAD data
    Description
    O-ring 15 x 3 mm as per data sheet F9.500
    Error loading CAD data. Please check your internet connection and try again.
    Please note: Our CAD data are generally simplified data and primarily reflect the outer contour and connections of the product (see also Terms of use). Please always refer to the relevant catalogue sheet for the exact dimensions with tolerances, in particular the information on mounting holes or attachments such as special clamps.
